Ultra High Molecular Weight Polyethylene (UHMWPE) Hose is an extremely flexible, high pressure, high temperature discharge hose designed to handle food products, milk, beverages, alcohols, sanitary materials, pharmaceuticals, chemicals, solvents & 98% of commonly used acids.
The hose will not leach into and contaminate the product being conveyed.

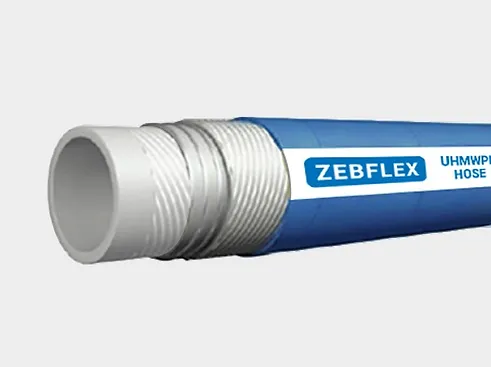

Construction
Clear PVC construction and reinforced with a rigid spiral coil framework.
| Core | : | White colour, Synthetic rubber with transparent UHMPE liner FDA approved |
| Reinforcement | : | Multiple plies of high tensile textile with helix steel wire |
| Cover | : | Blue abrasion resistant EPDM synthetic rubber |
| Temperature | : | -40°C to 120°C |
Applications
Multipurpose suction and delivery hose designed for :
- Milk, Wine, Beer, Beverages, Edible Oils
- Acids, Chemicals, Solvents
- Non-fatty and non-oily foods and liquids, potable water, sanitary products
- In-plant and tank transfer, delivery, transport
- Also suitable for CIP Cleaning & Sanitation purpose
- Resists any action from many corrosive chemicals, acids, pharma slurries etc.

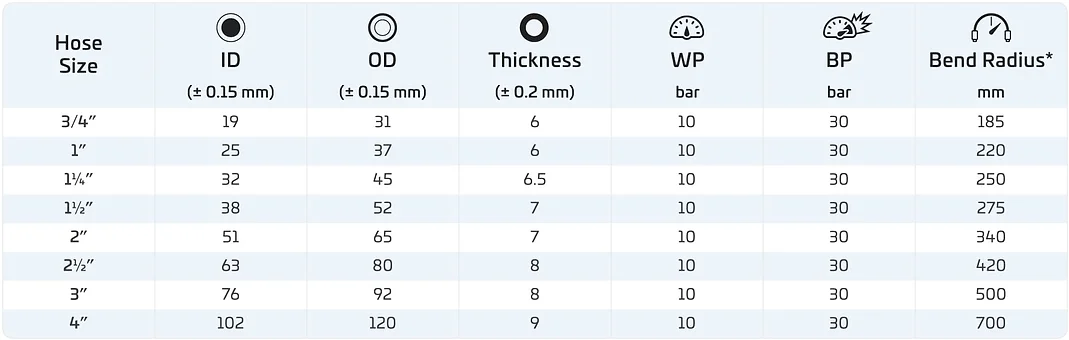

Product Parameters
* Bend radius values are for outer smooth hoses with spiral steel wire reinforcements.
Outer corrugated finish & discharge hoses have better flexing & bend radius.
